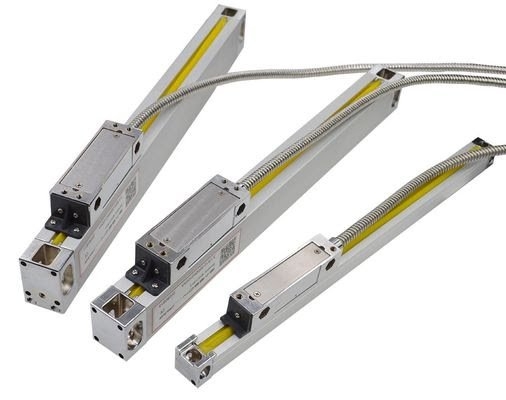

Easson - Linear Scale GS,JS Series
Features
- Measuring length£º50mm〜1000mm / 50mm
- Accuracy£º±10µm/m
- Uni-directional repeatability£º0.002mm
- Bi-directional repeatability£º0.005mm
- Meterial£ºGlass
- Grating period£º20µm
- Expansion coefficient£º8ppm / ¡æ
- Traversing speed£º60m / min
- Slide Carrier System£ºVertical five bearings supporting system
- Output signals£ºTTL / EIA-422-A£¨RS-422£©
- Signals period£º20 μm
- Electrical connection£º3m£¨STD£©£¬other£¨OPT£©
- Power supply£ºDC 5V±5£¥
- Operating temperature£º0〜50¡æ
- Reference mark£ºOne reference mark at mid point
- Protection£ºDIN 40050 IP53
| Measuring Range | GS10 Linear Encoder/0.005mm | |
| TTL | RS-422 | |
| 50mm | GS10T005 | GS10D005 |
| 100m | GS10T010 | GS10D010 |
| 150mm | GS10T015 | GS10D015 |
| 200mm | GS10T020 | GS10D020 |
| 250mm | GS10T025 | GS10D025 |
| 300mm | GS10T030 | GS10D030 |
| 350mm | GS10T035 | GS10D035 |
| 400mm | GS10T040 | GS10D040 |
| 450mm | GS10T045 | GS10D045 |
| 500mm | GS10T050 | GS10D050 |
| 550mm | GS10T055 | GS10D055 |
| 600mm | GS10T060 | GS10D060 |
| 650mm | GS10T065 | GS10D065 |
| 700mm | GS10T070 | GS10D070 |
| 750mm | GS10T075 | GS10D075 |
| 800mm | GS10T080 | GS10D080 |
| 850mm | GS10T085 | GS10D085 |
| 900mm | GS10T090 | GS10D090 |
| 950mm | GS10T095 | GS10D095 |
| 1000mm | GS10T100 | GS10D100 |
| Reading Head | GS10T | GS10D |
